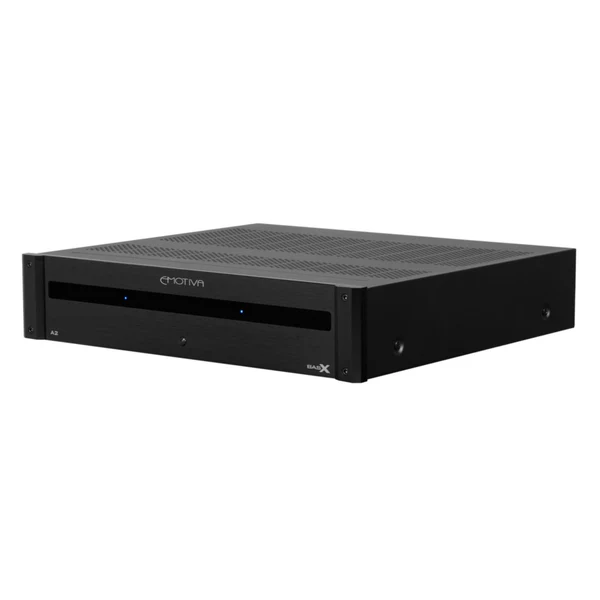

Emotiva BasX A2+NEW

About Emotiva BasX A2+NEW

The BasX A2+ is a two-channel
power amplifier that combines classical audiophile amplifier architecture,
based on a heavy-duty linear power supply, and a carefully designed high
current short signal path Class A/B output stage, with advanced
microprocessor-controlled monitoring and protection circuitry, to deliver
superb sound quality at a truly affordable price.

Audio Specifications

 Power Output (BOTH channels driven):

160 watts RMS per channel; 20 Hz 20 kHz; THD < 0.1%; into 8 Ohms.

250 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.

 Gain: 29 dB.

 Power Bandwidth (at rated power; 4 Ohm - 8 Ohm
load):

20 Hz to 20 kHz (+ / 0.07 dB).

 Broad Band Frequency Response:

5 Hz to 80 kHz +0/-1.8 dB.

 THD + noise:

< 0.02% (A-weighted); ref rated power.

 Signal to Noise Ratio (8 Ohm load):

> 112 dB; ref rated power; (A-weighted)

> 95 dB; ref 1 watt; (A-weighted)

 Minimum Recommended Load Impedance (per
channel):

4 Ohms (equals one 4 Ohm speaker or two paralleled 8 Ohm speakers).

 Damping Factor:

(8 Ohm load): > 500.

 Input Impedance:

27 kOhms.

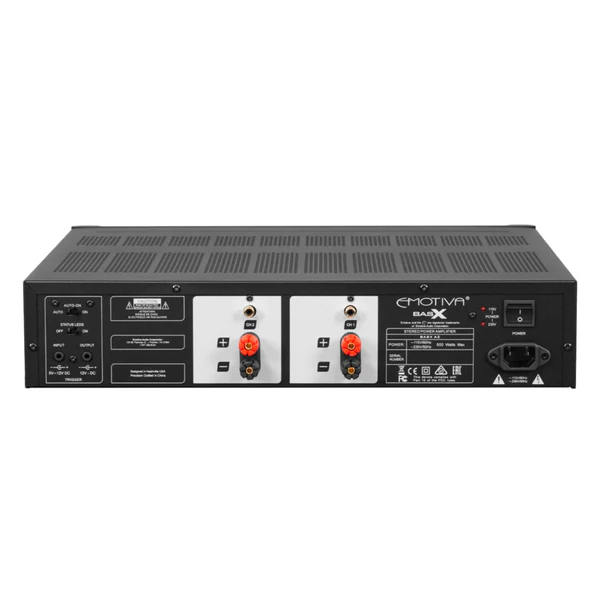

Input And Output Connections

Input Connections:

Unbalanced (RCA); one each per channel

Balanced (XLR); one each per channel.

Speaker Output Connections:

Audiophile grade 5-way binding posts

Trigger:

Trigger Input: 5 12 V (AC or DC); <10 mA input current required

Trigger Output: 12 VDC; can drive any load up to 120 mA

Environmental

Dimensions:

17 wide x 4-1/4 high x 15-1/2 deep (unboxed; including feet).

17 wide x 3-1/2 high x 15-1/2 deep (unboxed; without feet).

Weight:

25.2 pounds (unboxed).
