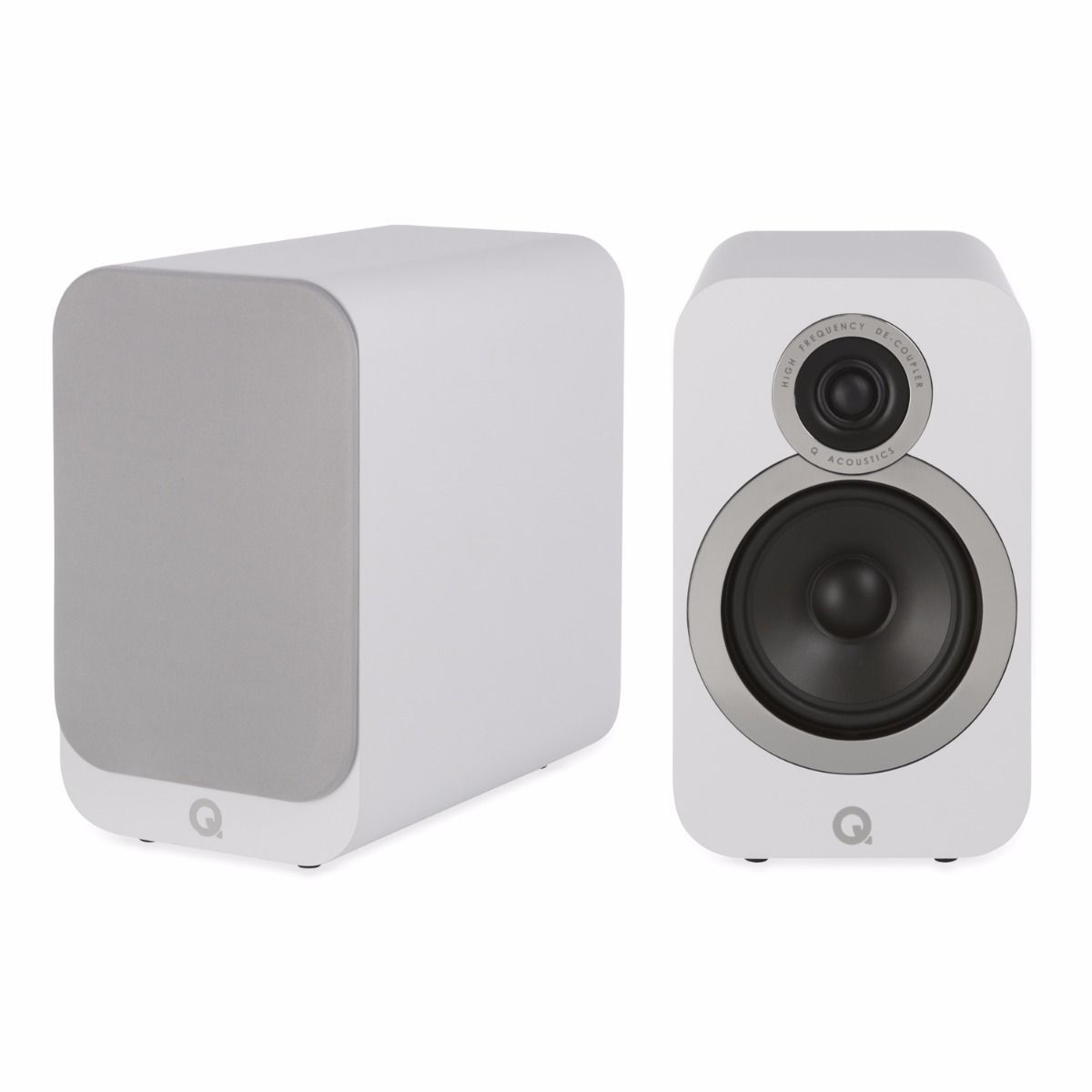

Q ACOUSTICS 3020i

Q ACOUSTICS 3020i Specification

Auto Memory
No

Aux Option
No

Bluetooth
Yes

Player Type
Passive Bookshelf Speaker

Material
MDF (Medium Density Fibreboard), P2 grade

Channels
2.0

Control Device
None (requires amplifier/AV receiver for operation)

FM Turner
No

USB Port
No

Display
No

Progressive Scan
No

Power
Recommended amplifier power: 25 - 75 W

Weight (kg)
5.6 kg per speaker

Color
Graphite Grey

Enclosure Type
Bass reflex

Impedance
6 Ohms

Sensitivity
88 dB

Speaker Terminals
Gold-plated; accepts 4 mm banana plugs

Included Accessories
Foam bungs for port tuning, user manual

Crossover Frequency
2.6 kHz

Dimensions (H x W x D)
170 x 278 x 282 mm

Grille
Magnetic removable grille

Finish Options
Graphite Grey, English Walnut, Carbon Black, Arctic White

Speaker Type
2-way reflex ported

Frequency Response
64 Hz 30 kHz

Woofer Size
125 mm (5 inch)

Recommended Placement
Bookshelf or stand mount

Tweeter Size
22 mm decoupled dome

Q ACOUSTICS 3020i About

Award-winning design heritage to shelf or stand mount to fit seamlessly into your chosen listening room, Larger cabinet increased cabinet volume from previous models delivering a larger scale sound and deeper bass
P2PTM bracing - helps keep the enclosure extra quiet through computer aided placement of internal bracing, Uses a 22mm decoupled High Frequency Driver with wide surround creating a wide even dispersion of stereo

Precision Sound, Contemporary Design

The Q Acoustics 3020i strikes a balance between audio engineering and modern design. With its sturdy MDF enclosure and sleek finish options, this speaker suits a variety of home settings, delivering clear and immersive high-fidelity sound. The magnetic removable grille ensures easy access and a streamlined look.

Flexible Placement and Connectivity

Designed for versatility, the 3020i can be positioned on a bookshelf or mounted on stands. Thanks to its gold-plated terminals compatible with 4 mm banana plugs, integration into new or existing audio setups is effortless. The bass reflex design offers adaptability, enhanced by foam bungs that help tailor the bass response to your room.

FAQ's of Q ACOUSTICS 3020i:

Q: How should I position the Q Acoustics 3020i speakers for optimal performance?

A: For the best results, place the 3020i speakers on sturdy bookshelves or dedicated stands, allowing at least a few inches of space behind them to maximize the bass reflex port's effectiveness. Use the included foam bungs to adjust the bass response according to the room acoustics.

Q: What type of amplifier is suitable for the 3020i speakers?

A: The 3020i is a passive bookshelf speaker and requires an external amplifier or AV receiver, ideally providing between 25 and 75 watts of power per channel at 6 Ohms. Ensure your amplifier matches these requirements for optimal sound quality.

Q: When should I use the foam bungs provided with the speakers?

A: Use the foam bungs in the rear bass reflex ports if the speakers are placed close to a wall or if you need to reduce the bass output to suit the acoustics of your room. This adjustment can help control low-frequency response in challenging placement situations.

Q: Where are the Q Acoustics 3020i speakers best utilized?

A: These speakers are ideal for medium-sized rooms, such as living rooms or dedicated listening spaces. Their versatile size and attractive finishes make them suitable for either bookshelf placement or stand mounting, integrating effortlessly into most home environments.

Q: What are the main benefits of the 3020i's design and build quality?

A: The 3020i features a robust MDF enclosure with P2 grade material, offering excellent acoustic properties and minimal unwanted resonance. The magnetic grille allows for quick changes in appearance, while gold-plated terminals ensure a reliable connection to high-quality audio equipment.

Q: How do I connect the 3020i to my audio system?

A: Connect the 3020i speakers to your amplifier or AV receiver using high-quality speaker cables terminated with standard 4 mm banana plugs or bare wire, connecting to the gold-plated speaker terminals at the rear of each speaker.
