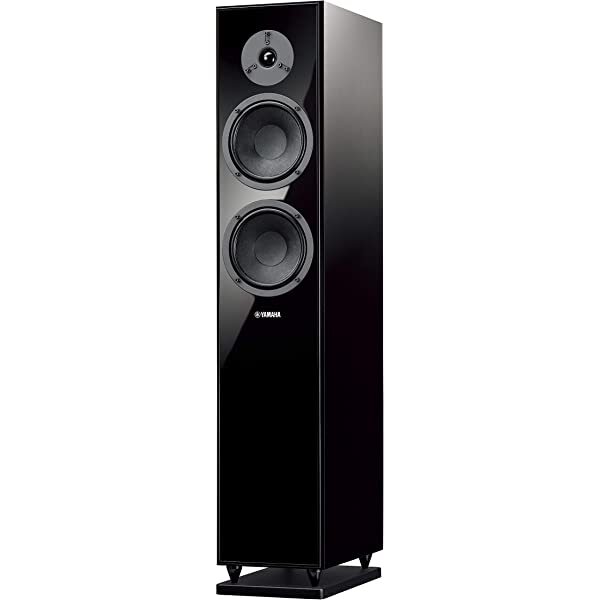

YAMAHA NS555

YAMAHA NS555 Specification

Bluetooth
Yes

Aux Option
No

Auto Memory
No

Player Type
Speaker System

Material
Wooden (High-Density MDF)

Channels
2

Frequency (MHz)
3535,000 Hz

Control Device
Manual

FM Turner
No

USB Port
No

Display
No

Progressive Scan
No

Power
250 W (each)

Weight (kg)
20

Color
Black

Recommended Amplifier Power
50250 W/ch

Dimensions (W x H x D)
222 x 980 x 345 mm

Crossover Frequencies
1 kHz, 3 kHz

Type
3-way Bass-Reflex Floor-standing speakers

Input terminals
Gold-plated, Bi-Wiring compatible

Woofer
2 x 16 cm (6-1/2") PMD cone

Midrange
13 cm (5") cone

Sensitivity
88 dB/2.83 V/1 m

Finish
Piano Black mirror finish

Magnetic Shielding
Yes

Tweeter
2.5 cm (1") aluminium dome, Waveguide horn

Impedance
6 Ohms

About YAMAHA NS555

High sensitivity and wide dynamic range for contemporary digital sources.
Waveguide horn allows the sound field to be shaped and controlled for optimal spatial expression in home theater environments.
PMD (Polymer-injected Mica Diaphragm) cone woofer combines highperformance materials and design for extreme accuracy.
Highest quality internal Monster Cable wiring
High frequency response dome tweeter delivers clear, natural highs.
Bi-wiring connectivity.

Superior Sound Engineering

YAMAHA NS555 speakers incorporate advanced driver technology, including PMD cone woofers and an aluminum dome tweeter, ensuring precise audio reproduction. The 3-way crossover at 1 kHz and 3 kHz separates frequencies with clarity, resulting in immersive music and movie experiences with detailed highs, mids, and lows.

Elegant and Durable Construction

Embodying Japanese craftsmanship, the NS555 boasts a piano black mirror finish and a high-density MDF cabinet. The robust structure reduces unwanted resonance, delivering pure sound while complementing sophisticated home interiors. Magnetic shielding enables placement near TVs without interference.

Enhanced Connectivity Options

Gold-plated terminals and bi-wiring compatibility provide superior signal transmission and flexible connection setups. While there's no USB, Bluetooth, or aux support, the NS555 is tailored for high-end amplifier systems and manual control for audiophiles who prioritize performance and classic usability.

FAQ's of YAMAHA NS555:

Q: How should I set up the YAMAHA NS555 speakers for optimal sound quality?

A: Position the NS555 speakers on a stable surface in your listening area, ideally away from walls. Connect them to a recommended amplifier (50-250 W/ch) using high-quality speaker cables. For enhanced clarity, utilize the bi-wiring option and gold-plated terminals.

Q: What are the benefits of bi-wiring compatibility on the NS555?

A: Bi-wiring allows separate cables to transmit high and low frequencies independently, reducing cross-channel interference and improving overall sound resolution and detail for discerning audio applications.

Q: When is magnetic shielding most useful for these speakers?

A: Magnetic shielding is beneficial when placing the NS555 speakers near televisions or monitors, as it prevents distortion or interference with electronic displays, ensuring clear audio and video performance.

Q: Where can the NS555 speakers be purchased or serviced?

A: The YAMAHA NS555 is available through authorized service providers, suppliers, traders, and wholesalers, particularly those offering Japanese audio products. Local Yamaha retailers can also assist with servicing and support.

Q: What process does the NS555 use to deliver a wide frequency range?

A: Its 3-way configuration uses specialized woofers, midrange, and tweeter drivers managed by strategic crossover frequencies (1 kHz and 3 kHz) to distribute audio signals accurately across its 35-35,000 Hz frequency response.

Q: How is the NS555 powered and controlled?

A: Each speaker operates manually and is powered by a compatible audio amplifier. There is no USB port, Bluetooth, FM tuner, or remote control; setup and use rely on conventional wired connections and amplifier interface.

Q: What materials contribute to the durability and sound quality of the NS555 speakers?

A: The NS555's cabinet is constructed from high-density MDF wood, which minimizes vibration and supports the detailed, immersive sound output. Its elegant piano black finish further protects the structure and adds visual appeal.
