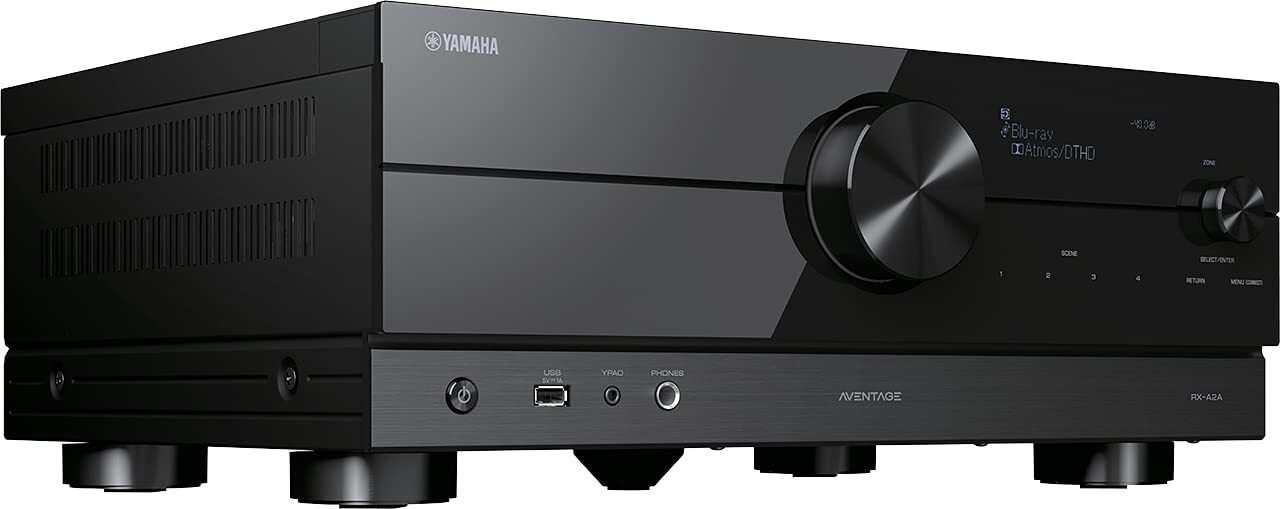

YAMAHA RX-A2A

YAMAHA RX-A2A Specification

Aux Option
Yes

Auto Memory
Yes

Bluetooth
Yes

Player Type
AV Receiver

Material
High-grade metal chassis with aluminium front panel

Channels
7.2 Channels

Frequency (MHz)
FM Tuner: 87.5 MHz108.0 MHz

Control Device
Remote Control, App Control

FM Turner
Yes

USB Port
1 Front USB (Type-A)

Display
LCD Display

Progressive Scan
Yes

Power
Rated Output Power (1kHz, 1ch driven): 100W (8 ohms)

Weight (kg)
10.2 kg

Color
Black

Wi-Fi
Built-in Wi-Fi

HDMI Inputs
7 (including 1 front)

Audio Output
3 out

Dimensions (W x H x D)
435 x 171 x 377 mm

4K/8K Support
4K, 60 Hz Pass-Through, 8K Ready via future update

Audio Decoding
Dolby Atmos, DTS:X, Yamaha Cinema DSP 3D

HDMI Outputs
1

Ethernet Port
Yes

Audio Input
8 in (1 front)

Voice Control
Alexa, Google Assistant, Siri compatible

Multiroom Capability
MusicCast multi-room technology

Surround Sound Processing
YPAO room calibration

AirPlay 2
Supported

Speaker Impedance
416

Subwoofer Pre-Out
2

About YAMAHA RX-A2A

HDMI with HDCP 2.3 and eARC (7 in / 1 out)
4K/60, 4K/120AB*, 8K/60B*, HDMI 2.1* (*via future update)
Wi-Fi, Bluetooth, AirPlay 2 and Spotify Connect
MusicCast multi-room audio and MusicCast Surround capable with MusicCast 20 or MusicCast 50 wireless surround speakers
Dolby Atmos, Dolby Atmos with Height Virtualization (via future update) and DTS:X
Voice control with Alexa and Google Assistant devices or Siri via AirPlay 2
Pandora, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz and Amazon Music

Immersive Sound and Visual Experience

The Yamaha RX-A2A supports Dolby Atmos, DTS:X, and Yamaha Cinema DSP 3D, providing an exceptional three-dimensional audio experience. Its 7 HDMI inputs and future-ready 8K support allow seamless integration with high-definition video sources, ensuring you enjoy crystal-clear visuals along with stunning sound.

Seamless Connectivity and Control

Built-in Wi-Fi, Bluetooth, and AirPlay 2 make streaming music or connecting devices effortless. MusicCast multi-room technology expands audio playback to any room, while compatibility with Alexa, Google Assistant, and Siri allows for convenient, hands-free control. Both remote and app-based management are supported for ease of use.

Robust Build and Flexible Setup

Encased in a high-grade metal chassis with an aluminium front panel, the RX-A2A is built to last. The YPAO room calibration system adapts sound output to your space, while multiple input and output options-including dual subwoofer pre-outs-support advanced speaker configurations. Its compact design easily fits into most home theater setups.

FAQ's of YAMAHA RX-A2A:

Q: How can I set up voice control with the Yamaha RX-A2A?

A: The RX-A2A is compatible with Alexa, Google Assistant, and Siri. To use voice control, ensure your receiver and associated smart device are connected to the same Wi-Fi network. Follow the integration instructions via the Yamaha app to enable your preferred voice assistant.

Q: What video formats does the RX-A2A support?

A: This AV receiver supports 4K video at 60 Hz pass-through on all HDMI inputs. 8K compatibility will be available through a future firmware update, keeping the device ready for new generation video formats.

Q: When should I use Yamaha's YPAO room calibration?

A: YPAO room calibration is best used during initial setup or when you change your speaker arrangement. This feature uses a microphone to analyze your room's acoustics, adjusting the sound output automatically for optimal listening quality.

Q: Where can I place the RX-A2A within my home setup?

A: With dimensions of 435 x 171 x 377 mm and a solid, attractive design, the RX-A2A fits easily into most AV cabinets or on open shelves. Place it in a ventilated spot to prevent overheating and ensure maximum performance.

Q: How do I connect multiple rooms using MusicCast?

A: MusicCast enables multiroom audio by connecting compatible Yamaha devices via Wi-Fi. Simply use the MusicCast app to group rooms and select your audio source, allowing music to play synchronously throughout your living spaces.

Q: What are the benefits of Dolby Atmos and DTS:X technologies?

A: Dolby Atmos and DTS:X deliver dynamic, three-dimensional sound that moves around you, heightening immersion in movies, games, and music. These technologies provide a more natural, lifelike listening experience compared to traditional surround sound.
