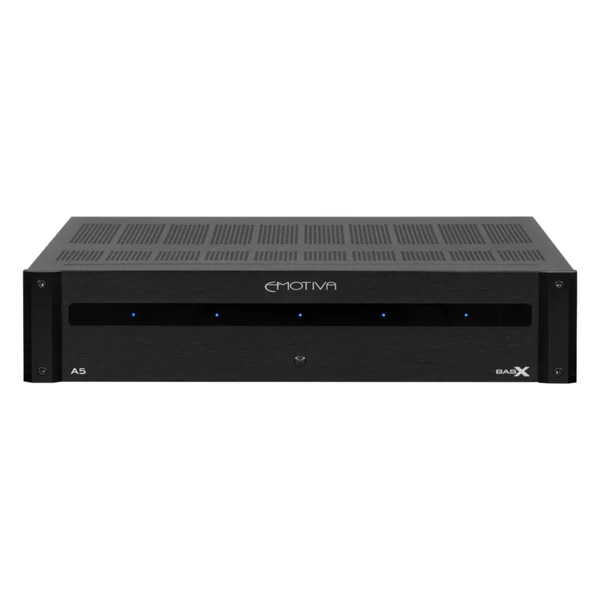

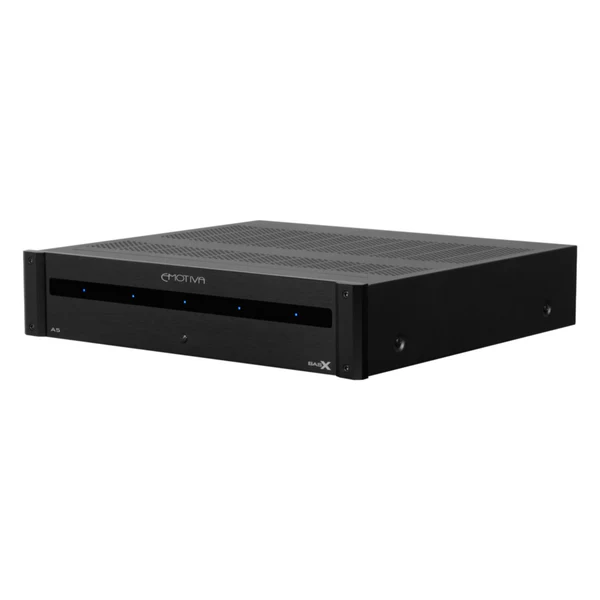

Emotiva BasX A5

About Emotiva BasX A5

The BasX A5 is a five channel power amplifier. The BasX A5 combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly reasonable price.

Audio Specifications

Power Output (ALL channels driven):

95 watts RMS per channel; 20 Hz 20 kHz; THD < 0.1%; into 8 Ohms

130 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms

Power Output (two channels driven):

120 watts RMS per channel; into 8 Ohms

175 watts RMS per channel; into 4 Ohms

Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / 0.02 dB)

Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB

THD + noise: < 0.02% (A-weighted); ref rated power

Signal to Noise Ratio (8 Ohm load):
> 116 dB; ref rated power; (A-weighted)

Minimum Recommended Load Impedance (per channel): 4 Ohms (equals one 4 Ohm load or two paralleled 8 Ohm loads)

Damping Factor (8 Ohm load): > 500

Input Sensitivity (for rated power; 8 Ohm load): 1.2 V

Gain: 29 dB

Input Impedance: 27 kOhms

Input And Output Connections

Input Connections: Unbalanced (RCA); one each per channel

Speaker Output Connections: Audiophile grade 5-way binding posts

Trigger:

Trigger Input: 5 12 V (AC or DC); <10 mA input current required.

Trigger Output: 12 VDC; can drive any load up to 120 mA

Power Requirements

115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)

Front Panel Controls and Indicators

Standby: push button

Status LEDs: one per channel; blue

Status LEDs change to red to indicate a fault condition

Standby LED: amber

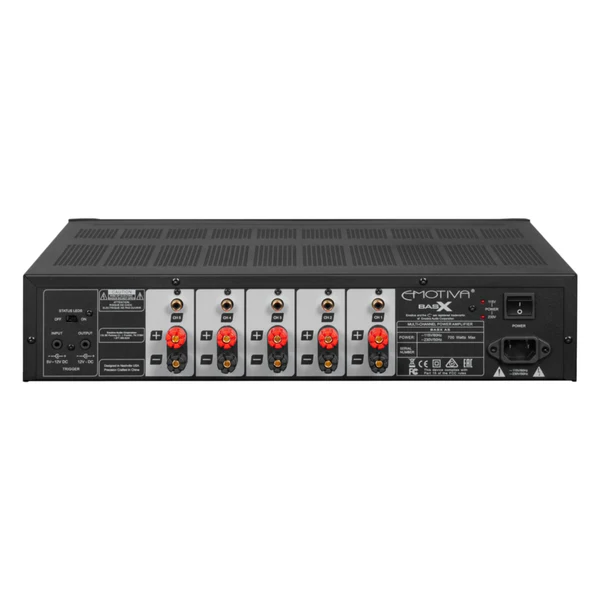

Rear Panel Controls

AC Power switch: rocker switch (switches AC main power)

Status LEDs switch: disables front panel Status LEDs

Protection

The BasX A5 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical

Dimensions:

17 wide x 4 high x 15-1/2 deep (unboxed, not including connectors)

21-1/2 wide x 8 high x 21 deep (boxed)

Weight:

26.5 lbs (unboxed)
33 lbs (boxed)
