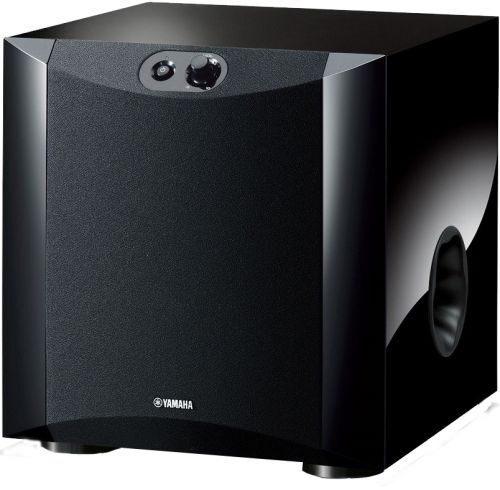

YAMAHA NS SW300

YAMAHA NS SW300 Specification

Aux Option
No

Bluetooth
Yes

Auto Memory
No

Player Type
Subwoofer

Material
MDF (Medium Density Fiberboard)

Channels
Subwoofer (Powered)

Frequency (MHz)
20 - 160 Hz

Control Device
Front Panel & Remote

FM Turner
No

USB Port
No

Display
No

Progressive Scan
No

Power
250 W

Weight (kg)
18.8

Color
Black

Standby Power Consumption
0.5 W

Driver Unit
25 cm (10") cone

Dimensions (W x H x D)
350 x 366 x 420 mm

Input Terminals
RCA pin jack, Speaker in (binding post) (2 sets)

Volume Level Control
Yes

Phase Control
Yes

Amplifier Type
Digital (PWM) type

Advanced YST
Advanced YST II

Bass Technology
Twisted Flare Port

Crossover Frequency
40140 Hz

About YAMAHA NS SW300

PWM digital drive high efficiency amplifier and dual feedback circuit.
New Twisted Flare Port contributes to clear and tight bass.
Advanced YST II (Yamaha Active Servo Technology II).
25 cm cone woofer with square wire voice coil.
Beautiful design will match a wide range of speakers and interiors.
Front control panel for easy control.
System control and Auto standby.

Advanced Bass Technology for Superior Sound

The NS-SW300 incorporates Yamahas Advanced YST II and Twisted Flare Port, combining innovative engineering with precision electronics to produce deep, detailed low frequencies. This technology ensures seamless integration with your main speakers, resulting in richer, clearer bass without distortion or muddiness, ideal for music and home theater setups.

Convenient Features and Flexible Connections

With dual RCA and binding post input terminals, this subwoofer easily connects to a variety of AV receivers or amplifiers. Volume, crossover, and phase controls are located on the front panel, and a remote control allows for quick adjustments during use. The NS-SW300 integrates well into existing sound systems and is up to the demands of both movie and music lovers.

Premium Build and Efficient Operation

Constructed with solid MDF and finished in an elegant black, the NS-SW300 is designed for both performance and durability. Despite its powerful output, it is energy-efficient with a standby consumption of just 0.5 W. Its compact footprint makes it suitable for diverse environments, while its 18.8 kg weight and sturdy design ensure stable operation.

FAQs of YAMAHA NS SW300:

Q: How do I connect the YAMAHA NS-SW300 to my existing audio system?

A: The NS-SW300 can be connected using RCA pin jacks or binding post speaker inputs. Simply plug the subwoofer into your AV receiver or amplifiers subwoofer output, adjusting the controls on the front panel or via the remote for optimal integration.

Q: What types of sound enhancement technologies are included in the NS-SW300?

A: This subwoofer features Yamahas Advanced YST II for clear, precise low-end, and the Twisted Flare Port design, which reduces air turbulence, producing smoother and more defined bass response.

Q: When is the best time to use the phase and crossover controls?

A: Adjust the phase and crossover controls during initial setup or when you notice uneven bass response, to ensure the subwoofer aligns properly with your main speakers and delivers seamless sound across all frequencies.

Q: Where should I place the NS-SW300 in my room for optimal performance?

A: For best results, position the NS-SW300 near your main speakers or along the front wall to allow for balanced bass dispersion throughout the room. Avoid placing it directly against walls or in corners to minimize unwanted resonance.

Q: What is the benefit of the energy-saving standby mode?

A: When not in active use, the NS-SW300 consumes only 0.5 W, reducing electricity bills while maintaining readiness, which is ideal for users conscious of power consumption.

Q: Can I control the subwoofer without getting up from my seat?

A: Yes, the NS-SW300 comes with a remote control that makes it easy to adjust volume, phase, and crossover settings for convenient, on-the-fly tuning.

Q: Is the NS-SW300 suitable for both music and home theater setups?

A: Absolutely. With its robust 250 W output, wide frequency response, and advanced Yamaha technologies, the NS-SW300 enhances both music listening and cinematic experiences.
